ESD7016MUTAG
Manufacturer:
On Semiconductor
Mfr.Part #:
ESD7016MUTAG
Datasheet:
Description:

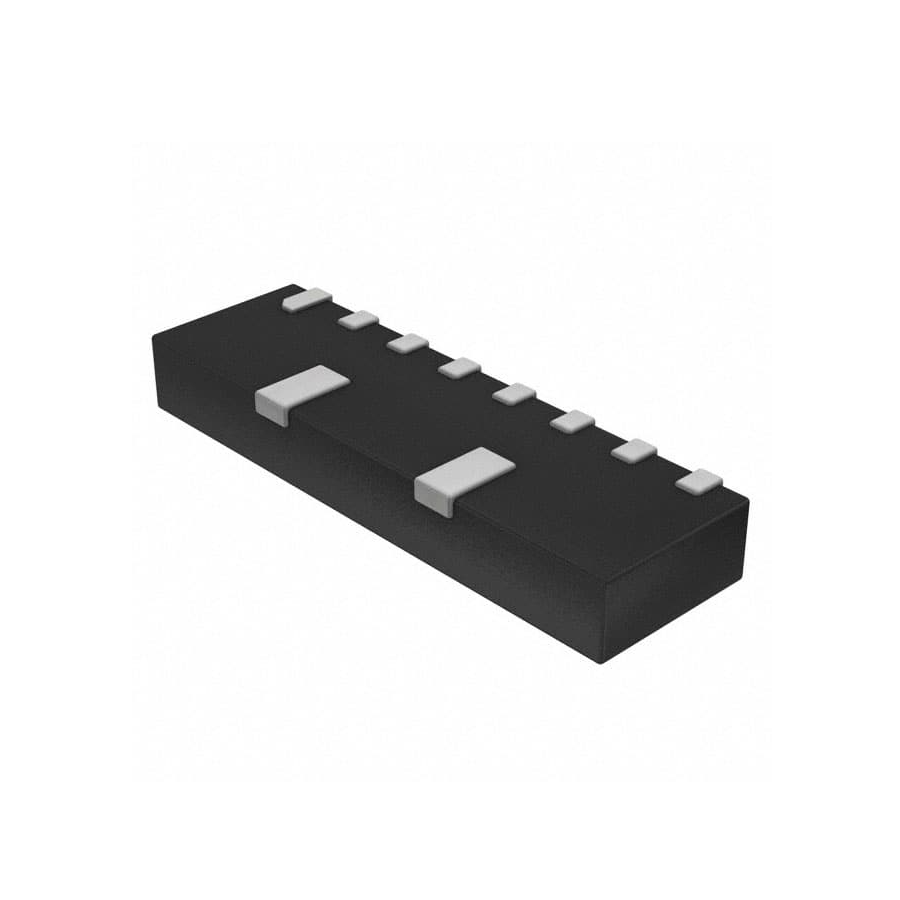

TVS Diodes UDFN-8 SMD/SMT Working Voltage:5 V Breakdown Voltage:5.5 V Clamping Voltage:10 V Peak Pulse Power:9.6 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 200 fF |
| Length | 3.3 mm |
| Width | 1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Leakage Current | 1 µA |
| Composition(Kit Type) | Zener |
| Height | 550 µm |
| Packaging | Reel |
| Depth | 1 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Working Voltage | 5 V |
| Peak Pulse Current | 1 A |
| Number of Channels | 8 |
| Number of Lines | 6 |
| Breakdown Voltage | 5.5 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Common Anode |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 5.5 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 10 V |
| Peak Pulse Power | 9.6 W |
| Power Line Protection | No |
| Number of Unidirectional Channels | 8 |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Voltage ESD Contact | 15 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 0.2 pF |
Stock: 583
Distributors
pcbx
pcbxUnit Price$0.51494
Ext.Price$0.51494
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51494 | $0.51494 |
| 10 | $0.40742 | $4.07420 |
| 25 | $0.37040 | $9.26000 |
| 50 | $0.33674 | $16.83700 |
| 100 | $0.30613 | $30.61300 |
| 300 | $0.29279 | $87.83700 |
| 500 | $0.28004 | $140.02000 |
| 1000 | $0.26326 | $263.26000 |
